In modern mining and construction, crusher performance directly impacts production efficiency and product quality. To ensure optimal crusher performance, a thorough installation plan is essential. The following is important information regarding crusher dimensions, weight, and feeding arrangements.

1.Crusher Dimensions

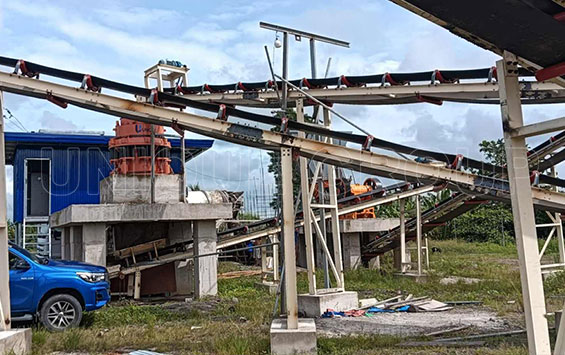

When installing a crusher, overall dimensions are a key consideration for the foundation structure. Sufficient clearance must be left above the crusher to allow for removal of the crushing cone and adjustment sleeve. Sufficient clearance should also be reserved on one side of the foundation for removal of the drive shaft. Furthermore, feeding arrangements such as chutes, feed hoppers, and other auxiliary equipment require space. Proper configuration of the discharge chamber and discharge conveyor is equally important.

When determining the crusher's overall dimensions, it is recommended to carefully refer to the overall dimensions and foundation drawings to ensure ease of inspection and maintenance.

2.Crusher and Component Weight

The crusher's weight is a parameter that must be considered when designing the foundation and overhead lifting equipment. To ensure safe and efficient installation or replacement of heavy parts such as crusher liners, it is recommended to install a bridge crane or use a mobile crane. The crusher and component weight tables can be used to calculate the required lifting equipment specifications, including wire ropes, slings, and hooks.

3.The Importance of the Feeder

The feeder is installed on top of the crusher, and its structure directly impacts crusher efficiency. An effective feeder evenly distributes material throughout the crushing chamber, ensuring efficient crusher operation. The design should ensure that the feeder is easily disassembled for future maintenance. Thorough planning is required before finalizing the feeder's structure.

To maximize the wear life of the liner, the feeder must minimize segregation of fine and coarse material. Furthermore, a screen is recommended before the crusher to remove fine and sticky material, preventing blockage of the discharge port and frequent overloading.

4.About UNIQUE GROUP

As a leading equipment manufacturer, UNIQUE GROUP specializes in providing high-quality crushers and other construction machinery. Our team of experienced engineers is dedicated to providing customized solutions and exceptional after-sales service.

If you're considering a project or have any related needs, please feel free to contact me! Our team is currently based in the Philippines and can provide you with a personalized project proposal
