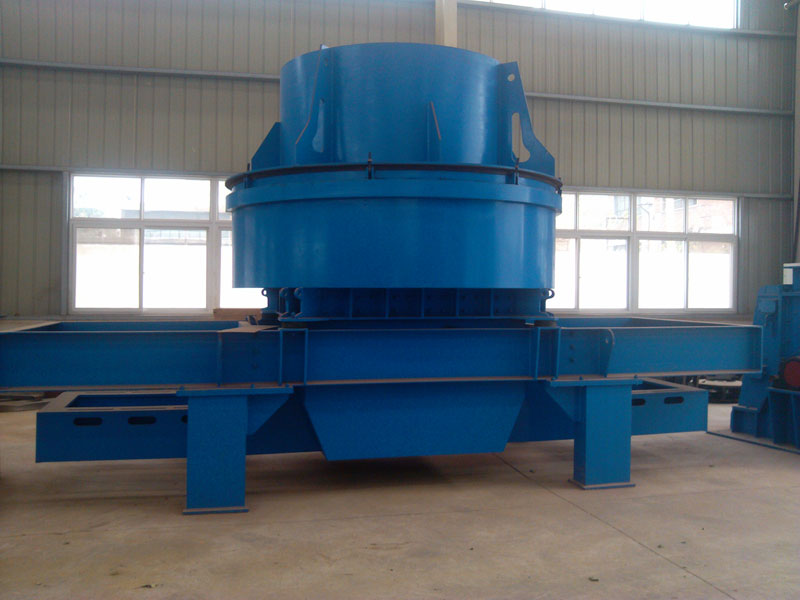

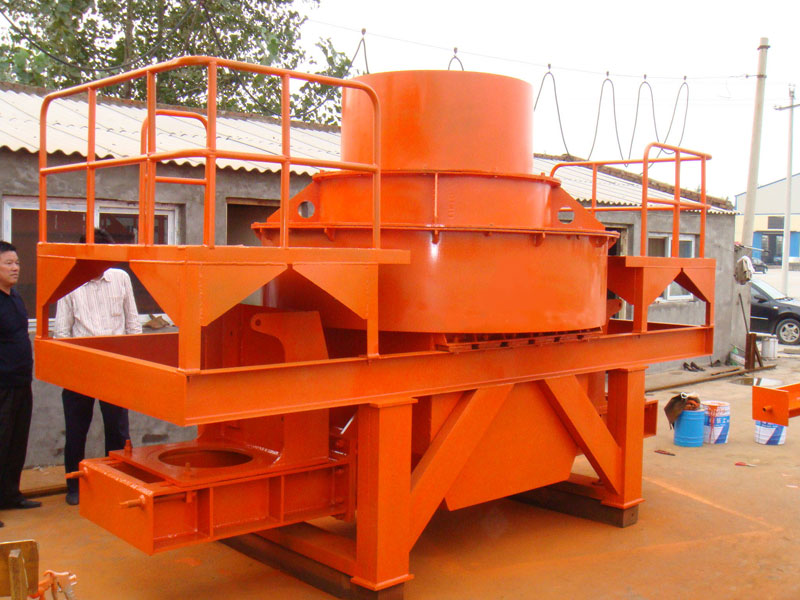

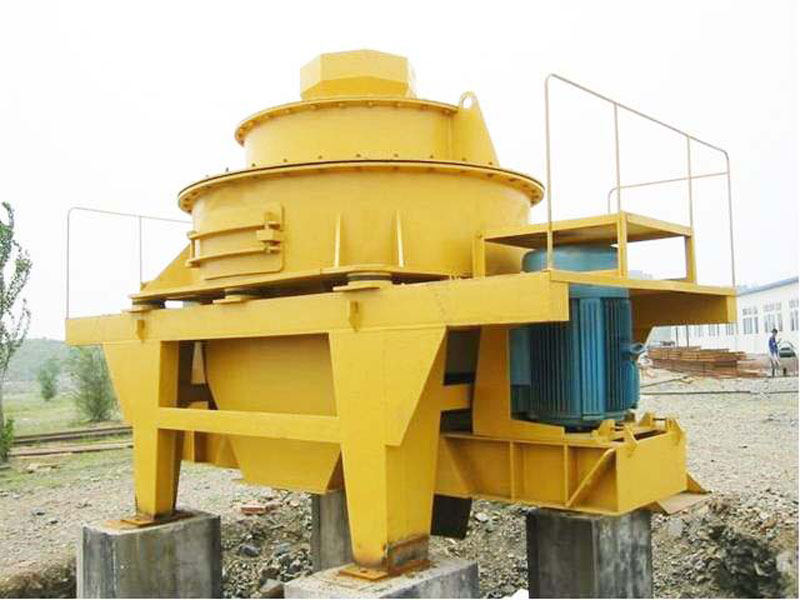

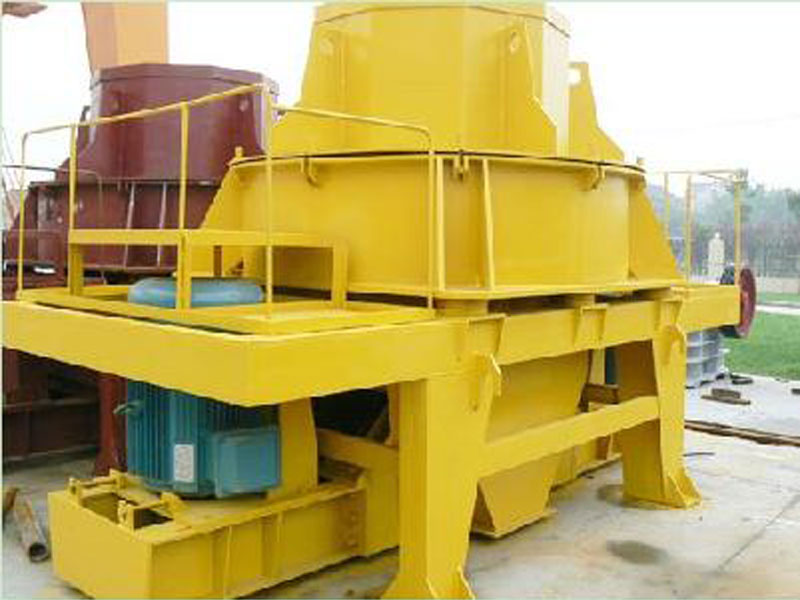

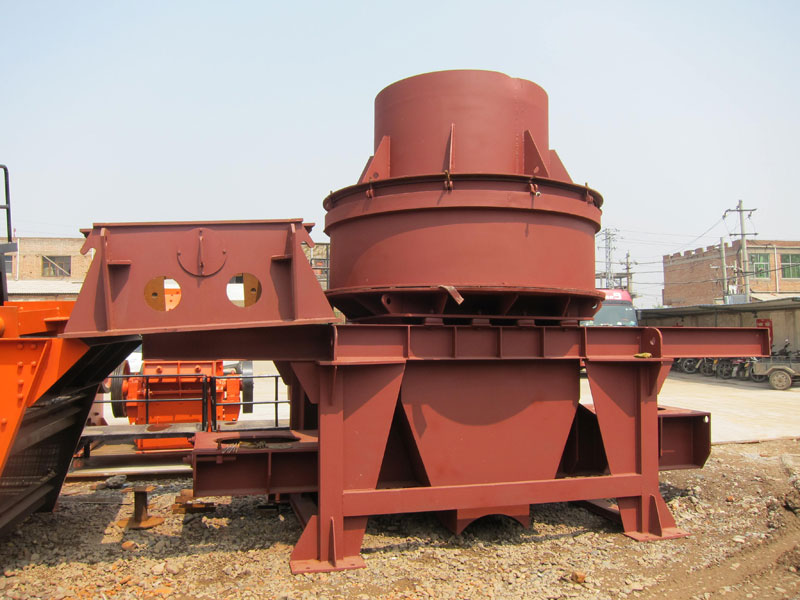

Vertical Shaft Impact Crusher

Vertical shaft impact crusher also was named as “sand maker”, it  is high-efficiency rock crushing equipment with domestic and international leading level; the machine is developed by introducing the crushing theory and technology from Barmac Company of America and combining the actual situation of sand making. It is widely used for crushing of hard and brittle materials, such as rock, grinding material, refractory material, cement clinker, quartzite, iron ore and concrete aggregate; and it is especially suitable for the sand and sandstone making for construction and road paving.



The Vertical shaft impact crusher was composed by feeding, sub-feeder, crushing chamber, impeller, main shaft assembly, transmission system base and motor, etc 6 parts.



1.  This machine is a new type rock crushing equipment developed in the 1990s and is used for substituting roller and ball mill;

2. The structure is simple and the operation is stable;

3.  Low energy consumption, high output and big reduction ratio;

4.  Small bulk, convenient operation, installation and maintenance;

5. The product is in the cubic shape with small iron pollution;

6. During the process, the stone rock can form a protective bottom layer which makes the equipment more durable;

7. Some easy wear parts adopt hard and wear-resistant materials and have small bulk and light weight, so that it can be changed easily.



Model	Max feedings size (mm)	Power ( kw)	Impeller rotation speed ( r/min)	Capacity ( t/h)	Dimensions (LxWxH) ( mm)	Weight (kg)
UT06	35	37-55	2000-3000	12-30	2500×1620×2600	5600
UT 07	45	55-75	1500-2500	25-55	2700×1760×2800	7600
UT 09	50	110-150	1200-2000	55-100	3900×2000×3070	12600
UT 10	60	150-180	1000-1700	100-160	4600×2350×3450	17300
UT 12	60	264-320	850-1450	160-300	4500×2400×3700	22500
UT13	60	320-400	800-1193	200-360	5200×2700×3800	27600
