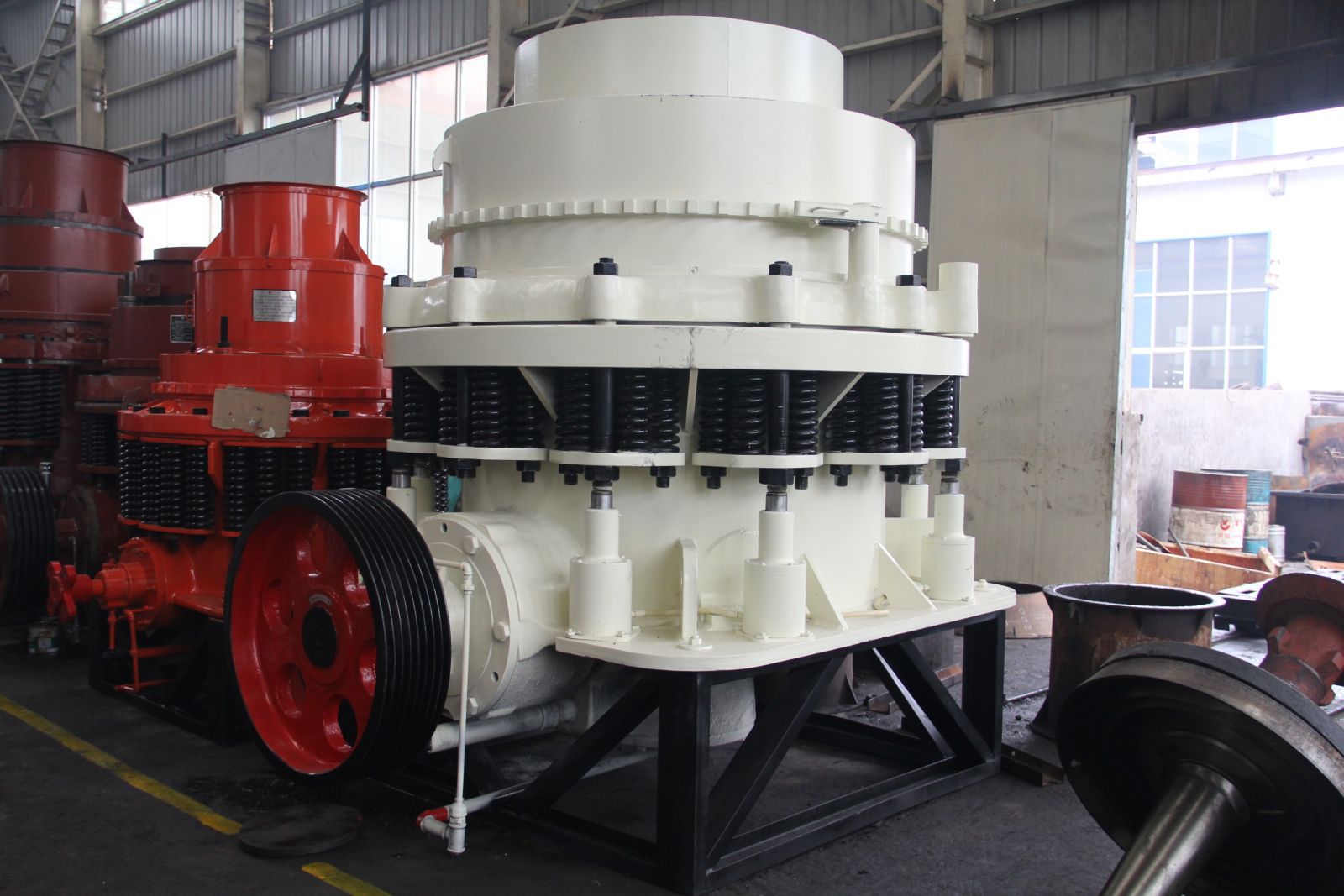

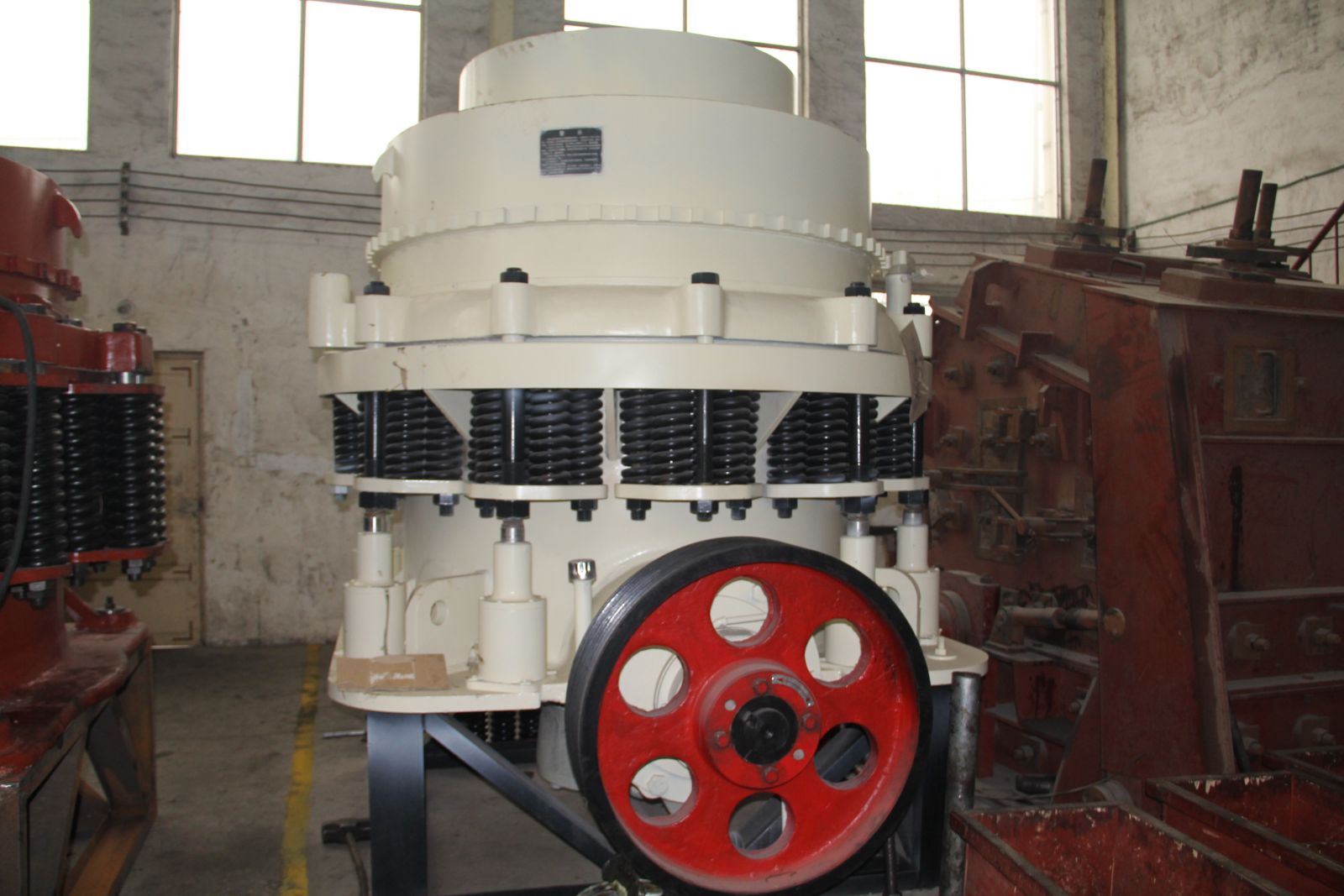

Symons Cone Crusher

We're here to help:

Easy ways to get the answers you need.

Follow Us :
| Share
■ Introduction

 The cone crusher of PSG series is widely used in the industries of metallurgy, building material, road construction, chemical engineering and silicate. It is suitable for crushing all kinds of ores and rocks with hardness of medium or above. The crusher has the feature of high crushing ratio, high efficiency, high capacity, low operating cost, easy adjustment and economical operation. The quality of material use for components and reasonable design of construction contributes to its longer running performance and even granularity of the crushed product in order to reduce the circulation load. Furthermore, by introducing the hydraulic clear chamber into the crusher of middle and large size, the down time is reduced accordingly. The customers can choose different type of chamber upon different request freely, because the wide ranges of products are provided.

■ Features

 This machine is divided into two types: the standard type and the short head type. Normally the large size of material is fed into the standard type, which means that the size of discharge is also coarser; and the small size of the material is fed into the short head type due to its steep crushing cone, which will unavoidably influence the size of discharge, therefore, it is much more suitable for producing the fine goods. Consequentially the standard type is generally used for medium and coarse material, and the short head type is for medium and fine material.

■ Technical Data


Technical Parameters of Symons Cone Crusher:

Specifications Style Chamber Type Broken Cone Main Dia.
(mm)
Adjustable Range of Output Size
(mm)
Mouth Edge
Feeding Size
in the Min Recommended
Discharging port
(mm)
Max Feeding Size
(mm)
Capacity
(t/h)
Motor Power
(kw)
Weight
(kg)
Overall Dimension
(L×W×H)(mm)
Ф900 PSGB-0910 standard thin 914 9-22 102 85 45-91 75 9980 2656×1636×2241
PSGB-0917 Standard Thick 13-38 1775 150 59-163
PSGB-0918 Standard Thicker 25-38 178 150 118-163
PSGB-0904 Short Head Thin 3-13 41 35 27-90 10530
PSGB-0906 Short Head Medium 3-16 76 65 27-100
PSGB-0907 Short Head Thick 6-19 102 85 59-129
Ф1300 PSGB-1313 Standard Thin 1295 13-31 137 115 109-181 160 22460 2983×1866×3156
PSGB-1321 Standard Medium 16-38 210 178 132-253
PSGB-1324 Standard Thick 19-51 241 205 172-349
PSGB-1325 Standard Thicker 25-51 259 220 236-358
PSGD-1306 Short Head Thin 3-16 64 54 36-163 22590
PSGD-1308 Short Head Medium 6-16 89 76 82-163
PSGD-1310 Short Head Thick 8-25 105 89 109-227
PSGD-1313 Short Head Thicker 16-25 133 113 209-236
Ф1600 PSGB-1620 Standard Thin 1676 16-38 209 178 181-327 220 43270 3941×2954×3771
PSGB-1624 Standard Medium 22-51 241 205 258-417
PSGB-1626 Standard Thick 25-64 269 228 299-635
PSGB-1636 Standard Thicker 38-64 368 313 431-630
PSGD-1607 Short Head Thin 5-13 70 60 90-209 43870
PSGD-1608 Short Head Medium 6-19 89 76 136-281
PSGD-1613 Short Head Thick 10-25 133 113 190-336
PSGD-1614 Short Head Thicker 13-25 133 113 253-336
